Product Description

The Allen-Bradley 1794-AENTR is a dual-port EtherNet/IP Adapter Module for FLEX I/O systems, offering high-speed and reliable communication for distributed industrial control applications. Designed for scalability and performance, it enables efficient integration of FLEX I/O modules with Ethernet-based networks.

Specifications:

• Model: 1794-AENTR

• Type: FLEX I/O Communication Adapter

• Network: EtherNet/IP

• Input Voltage: 24 VDC (Range: 19.2–31.2 VDC)

• Input Current: 400 mA

• Output Voltage: 5 VDC

• Output Current: 640 mA

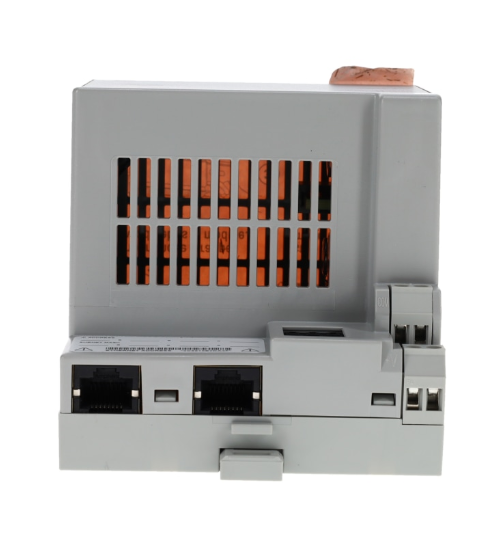

• Ports: Dual RJ45 Ethernet Ports (for device-level ring or linear topology)

• Mounting: DIN rail or panel mount

• Warranty: MeloMation 2-Year Warranty Included (factory warranty not applicable)

Applications:
Ideal for connecting FLEX I/O modules to EtherNet/IP networks in automation, process control, and manufacturing systems, ensuring reliable and consistent performance across devices.
