Product Description

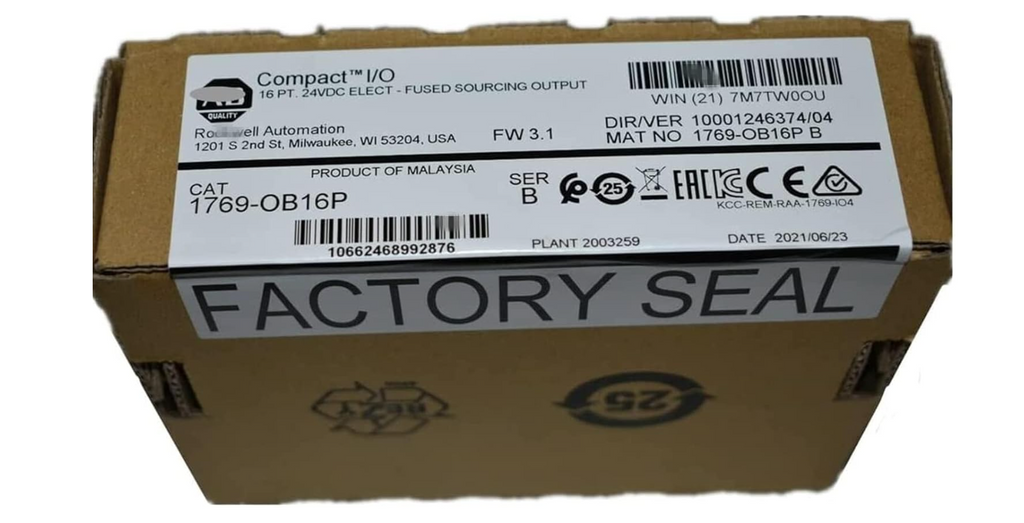

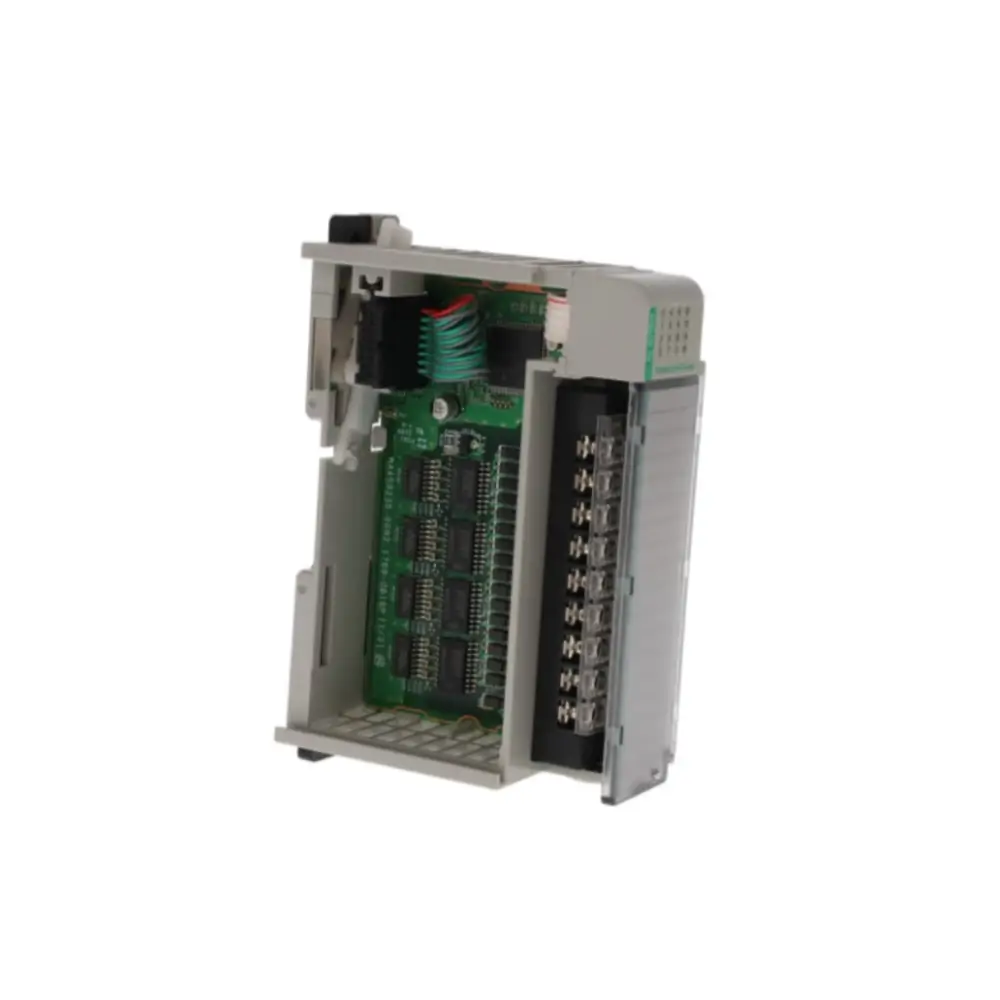

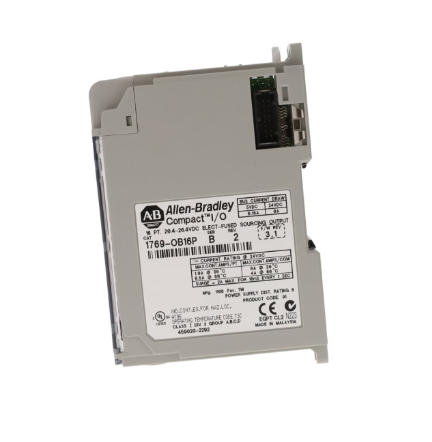

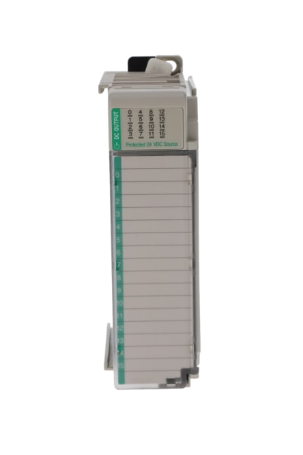

The Allen-Bradley 1769-OB16P is a CompactLogix DC Digital Output Module that provides reliable and electronically protected output control for modern automation systems. Featuring 16 sourcing outputs, this module is ideal for controlling field devices such as solenoids, actuators, and indicator lights. Its compact size, DIN-rail mounting, and built-in electronic protection make it a dependable choice for space-efficient machine and process control panels.

Specifications

• Model Number: 1769-OB16P

• Series: CompactLogix 1769 I/O

• Type: Digital Output Module (Sourcing)

• Output Channels: 16 Points

• Output Voltage Range: 20.4 – 36.4 V DC

• Output Current: 0.5 A per Point (typical)

• Protection: Electronically Protected Outputs

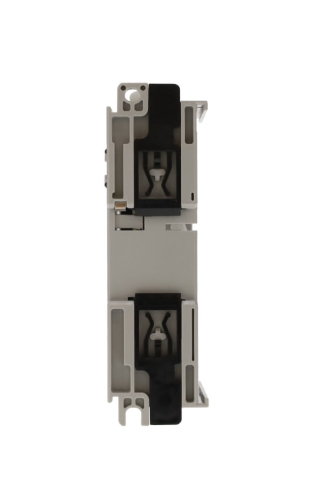

• Mounting: DIN Rail / CompactLogix System

• Backplane Current: ≈ 200 mA @ 5 V DC

• Operating Temperature: 0 °C to 60 °C

• Manufacturer: Rockwell Automation

• Warranty: MeloMation 2-Year Warranty Included (factory warranty not applicable)

Applications

Perfect for OEM machines, manufacturing lines, and distributed I/O systems, the 1769-OB16P offers efficient DC output control in a CompactLogix environment. Its protected design safeguards both the module and connected devices from short circuits and overloads, ensuring long-term system reliability.
