Product Description

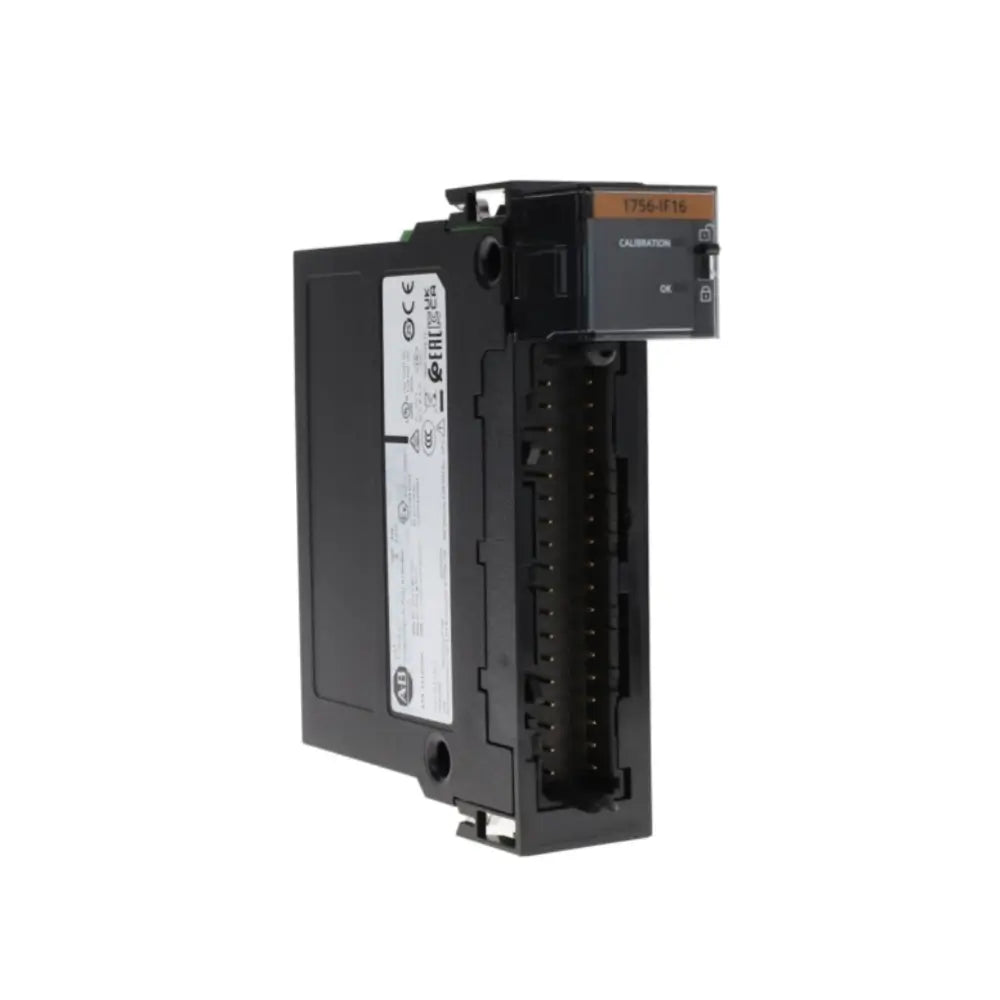

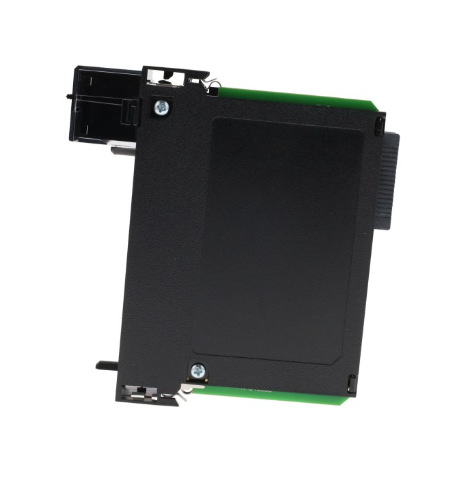

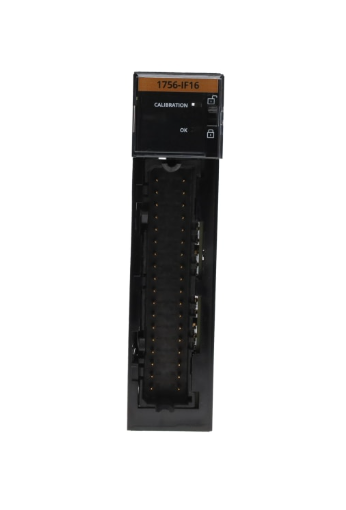

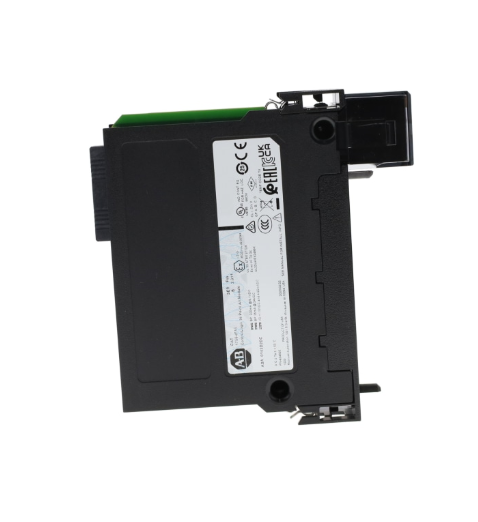

The Allen-Bradley 1756-IF16 is a ControlLogix Analog Input Module designed for precise and flexible signal acquisition in industrial automation systems. Featuring 16 configurable input channels, this module supports current and voltage measurements with high accuracy and fast conversion speed. The 1756-IF16 provides single-ended, differential, and high-speed differential input modes, making it ideal for a wide range of analog control applications.

Specifications:

• Model Number: 1756-IF16

• Series: ControlLogix

• Type: Analog Input Module

• Input Channels: 16 Points

• Input Signal Type: Current / Voltage

• Input Configurations:

  • 16 Single-Ended

  • 8 Differential

  • 4 High-Speed Differential

• Style: Open Style

• Mounting: Chassis Mount (ControlLogix Rack)

• Manufacturer: Rockwell Automation

• Warranty: MeloMation 2-Year Warranty Included (factory warranty not applicable)

Applications:

The 1756-IF16 is ideal for process control, data acquisition, and automation systems requiring reliable and accurate analog signal monitoring. It provides stable and precise readings for a wide range of industrial sensors and instrumentation.
