Product Description

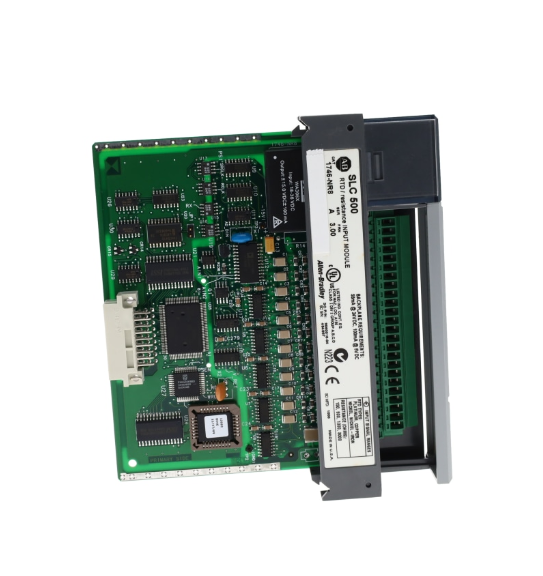

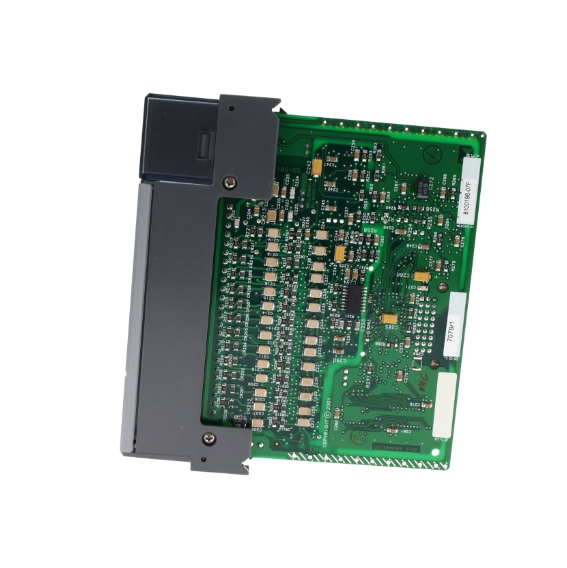

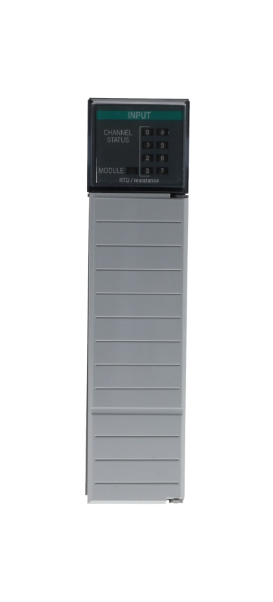

The Allen-Bradley 1746-NR8 is a high-precision RTD Input Module designed for temperature measurement within SLC 500 control systems. With eight input channels and reliable signal conditioning, it provides accurate temperature readings for resistance temperature detectors (RTDs). This open-style module offers efficient performance and easy integration, making it ideal for industrial automation and process control applications.

Specifications:

• Model Number: 1746-NR8

• Series: SLC 500

• Type: RTD Input Module

• Input Channels: 8 Channels

• Input Signal Type: RTD (Resistance Temperature Detector)

• Current Draw: 55 mA @ 24 V DC, 100 mA @ 5 V DC

• Style: Open Style

• Mounting: Rack Mount (SLC Chassis)

• Status: Discontinued by Manufacturer

• Manufacturer: Rockwell Automation

• Warranty: MeloMation 2-Year Warranty Included (factory warranty not applicable)

Applications:

Ideal for process automation and temperature monitoring in manufacturing, energy, and industrial control systems. The 1746-NR8 ensures stable and accurate RTD measurement for temperature-critical operations.
